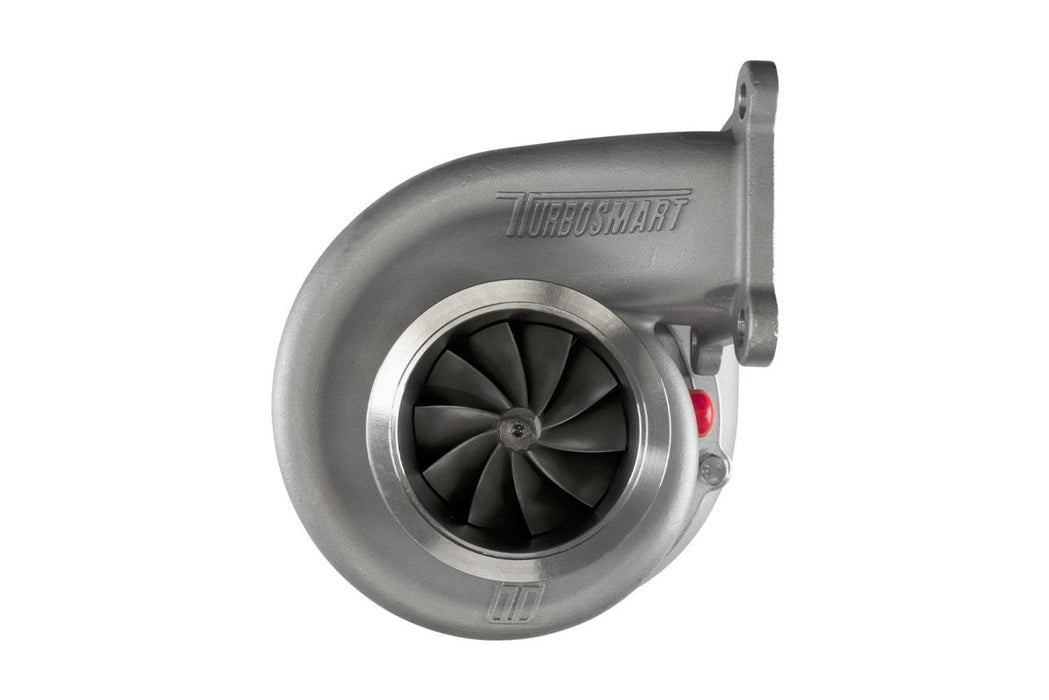

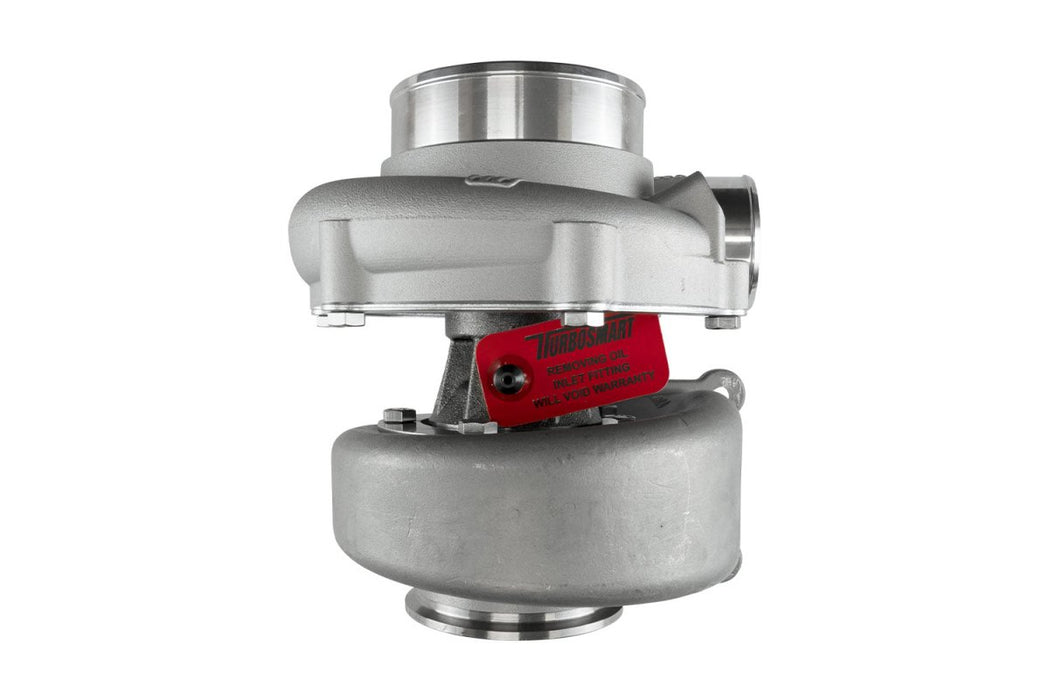

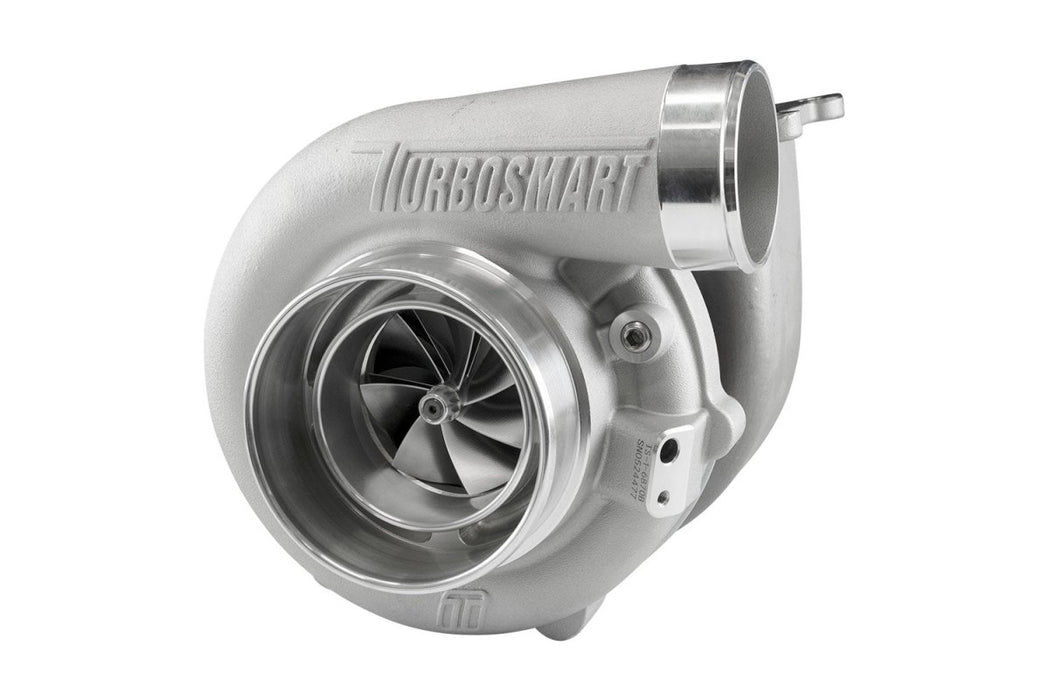

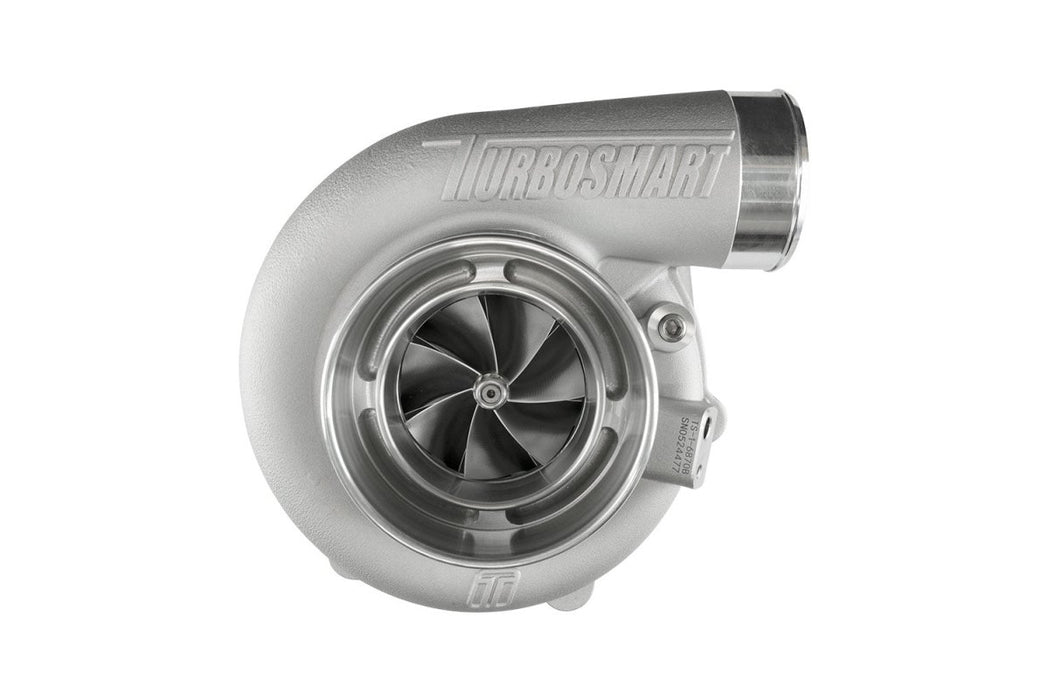

Turbosmart TS-1 6870 Kompact Externally Wastegated Turbo w/ T4 Divded Inlet, V-Band Outlet, 1.00AR Hotside

All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high performance turbines – while being smaller, lighter and faster in response than other solutions on the market.

The TS-1 series are oil cooled turbochargers with lightweight investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you’ve come to know Turbosmart for.
The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique turbine wheel to ensure power at high loads and flow is maintained.

Every Turbosmart turbocharger comes standard with everything you need for installation, weld flanges, V-band clamps, gaskets, oil feed and drain fittings as well as water feed and return fittings are included.

Features:

• Unparalleled transient response
• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels
• Lightweight 310s stainless steel investment cast turbine housings
• Lightweight, Aluminium compressor covers
• CFD driven designed housings for optimal A/R’s and flow
• 713C Inconel turbine wheel for extreme EGT’s
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated Iron backplate on the center housing


Specifications:

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 68mm

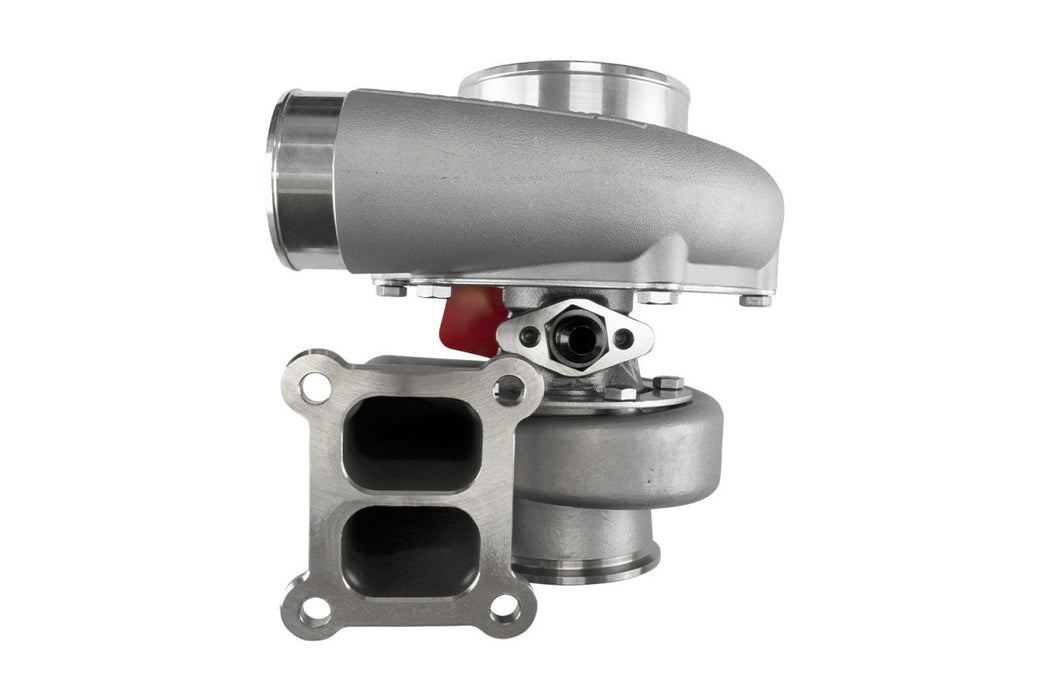

• Turbine Inlet: T4 Divided
• Turbine Exducer: 70mm
• Turbine AR: 1.00
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 15.1lbs
• Horsepower Rating: 850-990HP

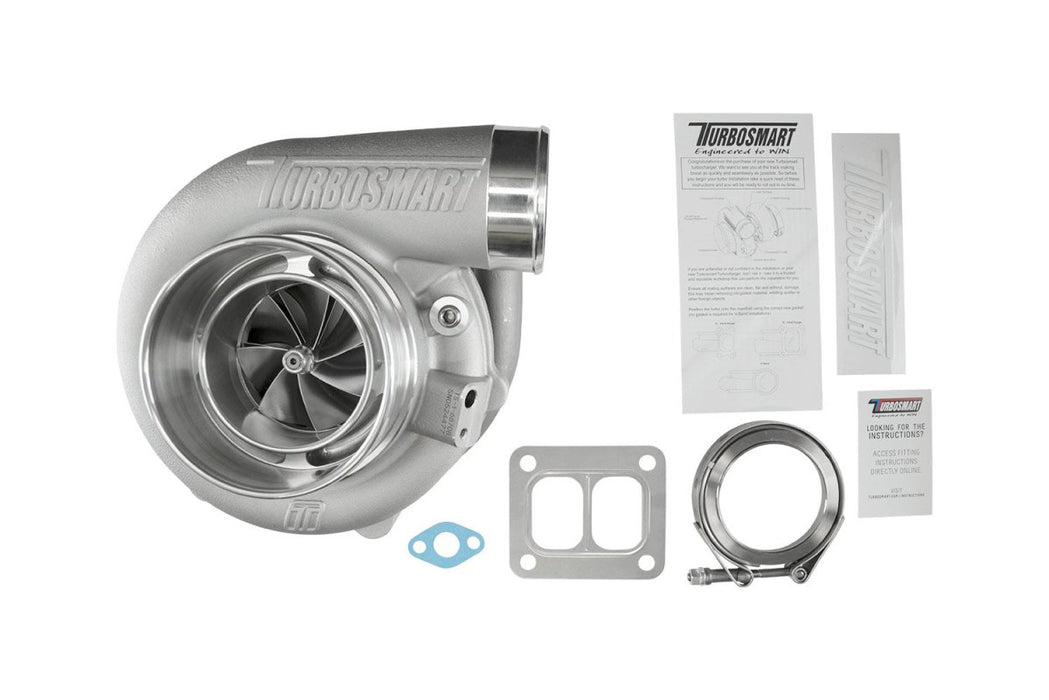

Included:

• (1) Turbosmart Performance Turbocharger
• (2) Weld Flanges (Turbine Inlet and Outlet)
• (2) V-Band Clamps (Turbine Inlet and Outlet)
• (1) Oil drain gasket
