AMS Performance Top Mount Intercooler Silver 2022-2024 WRX - AMS.50.09.0001-1 - Subimods.com

AMS Performance Top Mount Intercooler Silver 2022-2025 WRX / 2020-2025 Outback XT / 2020-2025 Outback Wilderness

$729.95
$729.95 - $729.95
$729.95
$729.95 - $729.95
$729.95
Only 2 Left In Stock! Usually Ships within 1-2 Business Days
SKU AMS.50.09.0001-1
by AMS Performance

DETAILS

The AMS Performance Top Mount Intercooler provides exceptional heat transfer efficiency due to its superior engineering, materials, and construction. Our team specified the highly efficient 4″ thick intercooler core based on years of motorsports experience which will help keep your intake temps lower and maintain the maximum power output of your WRX, no matter the conditions. With a 71% increase in core size over factory, higher volume cast aluminum end tanks, and TIG welded by hand in the USA, the AMS Performance Top Mount Intercooler redefines heat management for the FA24 engine.

Features:

  • Huge 21″x7.5″x4″ Bar and Plate Core to Fill the Factory Hood Scoop and Duct

  • 37 Row Intercooler Core for Excellent Efficiency

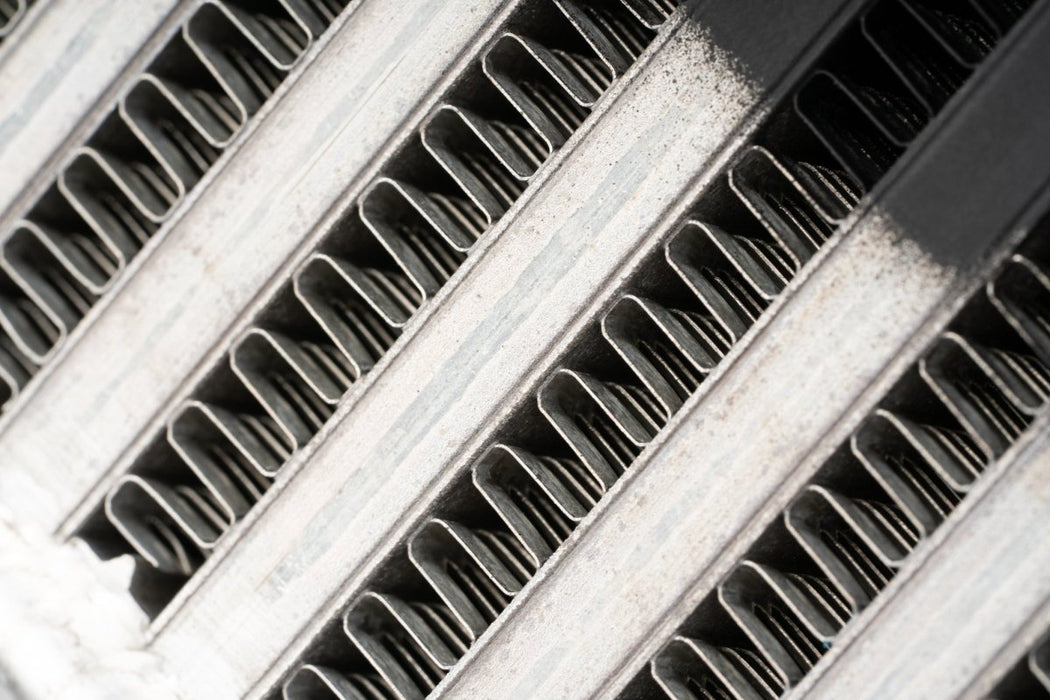

  • Louvered Fins Inside and Out Increases Surface Area for Heat Transfer

  • Pressure Tested Before Boxing

  • Direct Bolt-In Design and Requires Zero Cutting for Easy Install

Comparison to Stock TMIC:

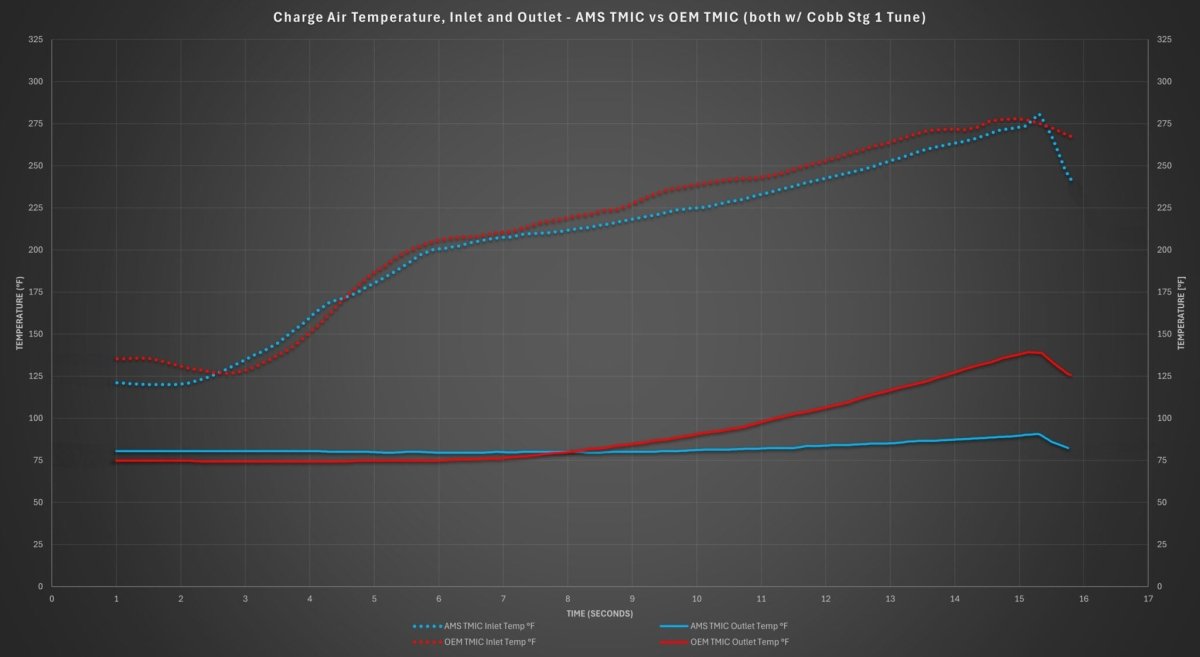

  • 48.6°F Reduction in Charge Air Temp
  • 15% lb/min Increase in Mass Airflow

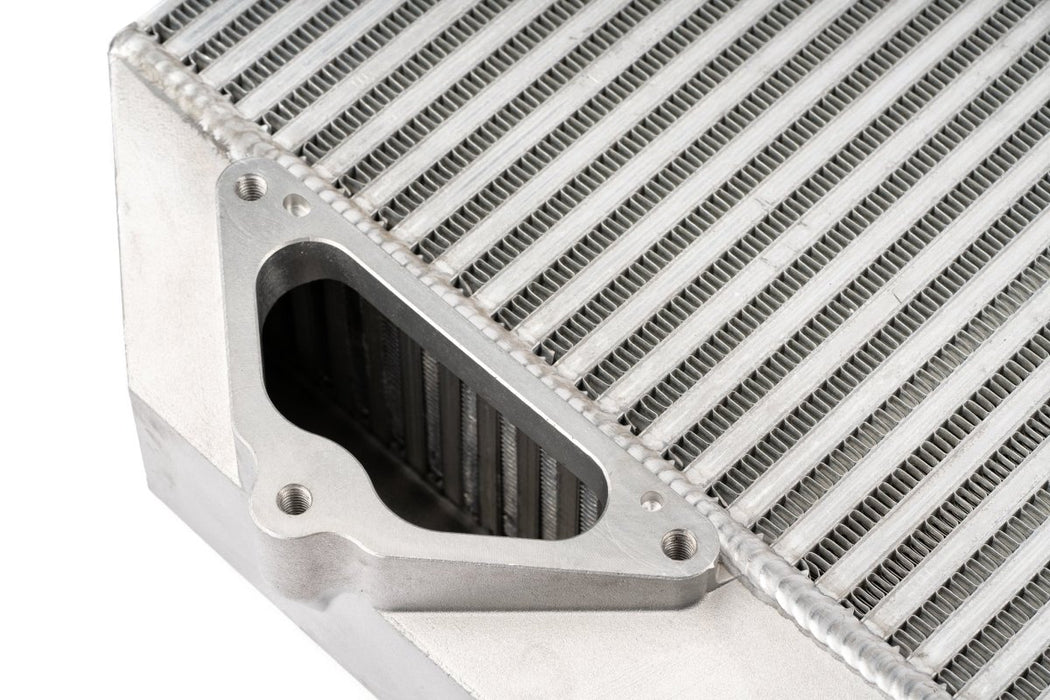

  • Charge Pipe Connection Flange Enlarged 13%
  • 12% Reduction in Pressure Drop
  • 71% Increase in Core Size

Installation Instructions



Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
d
dave stark
AMS intercooler preformans as listed

Easy fit, took about 20 minutes. Welds look great. Brought down the manifold temps down dramatically

Hello Dave!

Thank you for leaving a review for the AMS Performance Top Mount Intercooler! We're glad to hear that it was an easy fit and that the welds look great. Happy driving!

Regards,

G
Gio Gomez
AMS Performance Top Mount Intercooler Silver (2022–2024 WRX)

This intercooler is a beast. Fitment was spot on for my 2023 WRX, and the quality feels premium right out of the box. Throttle response and temps have noticeably improved, especially on back-to-back pulls. Highly recommend if you’re looking to keep things cool under boost.

Gio,

Thank you for your 5 Star Review on the AMS Performance Top Mount Intercooler! We are happy to hear it is doing its job and making a noticeable difference in performance. It is always great to see high-quality parts deliver on their promise.

Regards,

D
Daz
Great Intercooler.

AMS makes very high quality stuff at a fair price. AMS is becoming my go to for performance parts. They don't gouge on prices like so many others do and they have excellent R&D on their products.

This intercooler is GTG!

Daz,

Thank you for taking the time to leave a 5-Star Review! AMS always delivers top-notch performance parts, and we are happy to hear their intercooler is working out for you! Enjoy the boost!

Regards,

S
Shawn Williams
Great build quality

I installed this myself and have an ADD W1 catch can on the bracket as well. For some reason the factory mounting brackets required modification to accommodate this TMIC. They simply wouldn’t line up properly without enlarging the mounting holes to accommodate a shift in placement. Can’t be certain if the catch can played a part in that or not. Once the brackets were modified I’m very happy with the IC

Hi there Shawn,

Thank you for leaving a 5 Star Review for the AMS Performance Top Mount Intercooler. We're happy to hear that you found the build quality to be great and were able to install it yourself. We apologize for any inconvenience caused by the factory mounting brackets, but we're glad to hear that you were able to make modifications and are now satisfied with the intercooler. If you have any further questions or concerns, please don't hesitate to reach out to the Subimods Team! Happy driving!

Regards,

B
Brian Morrison
Huge TMIC

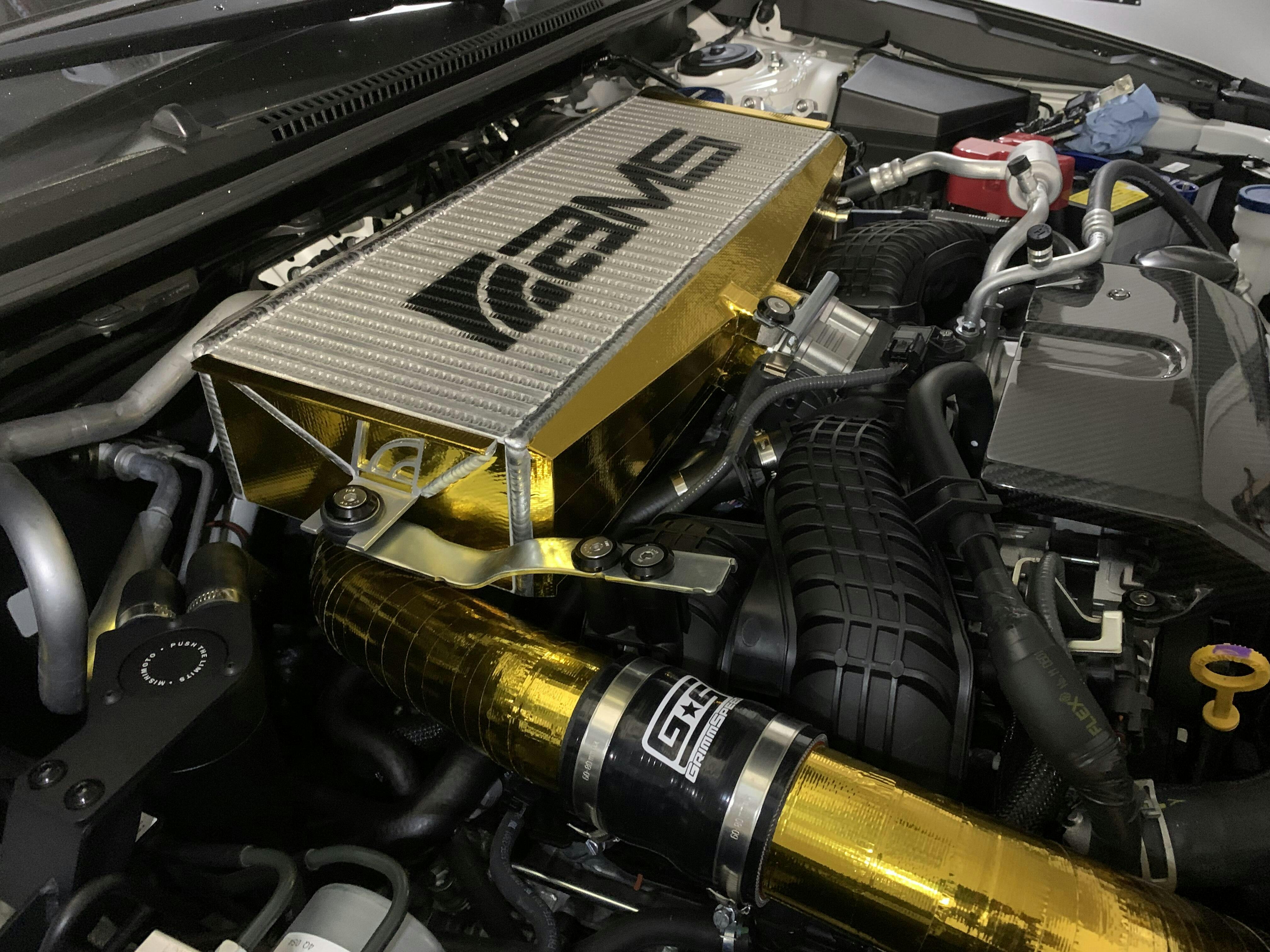

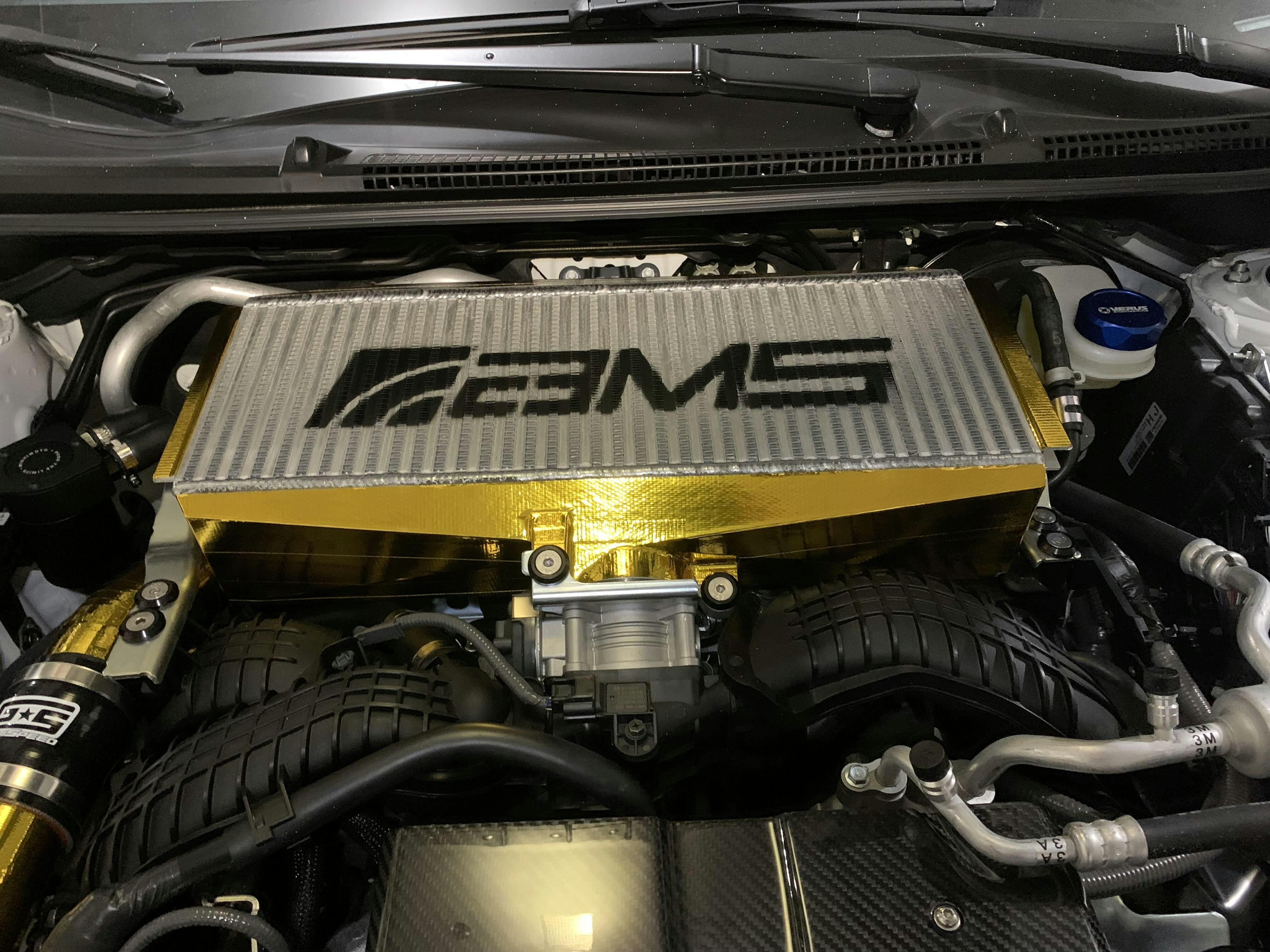

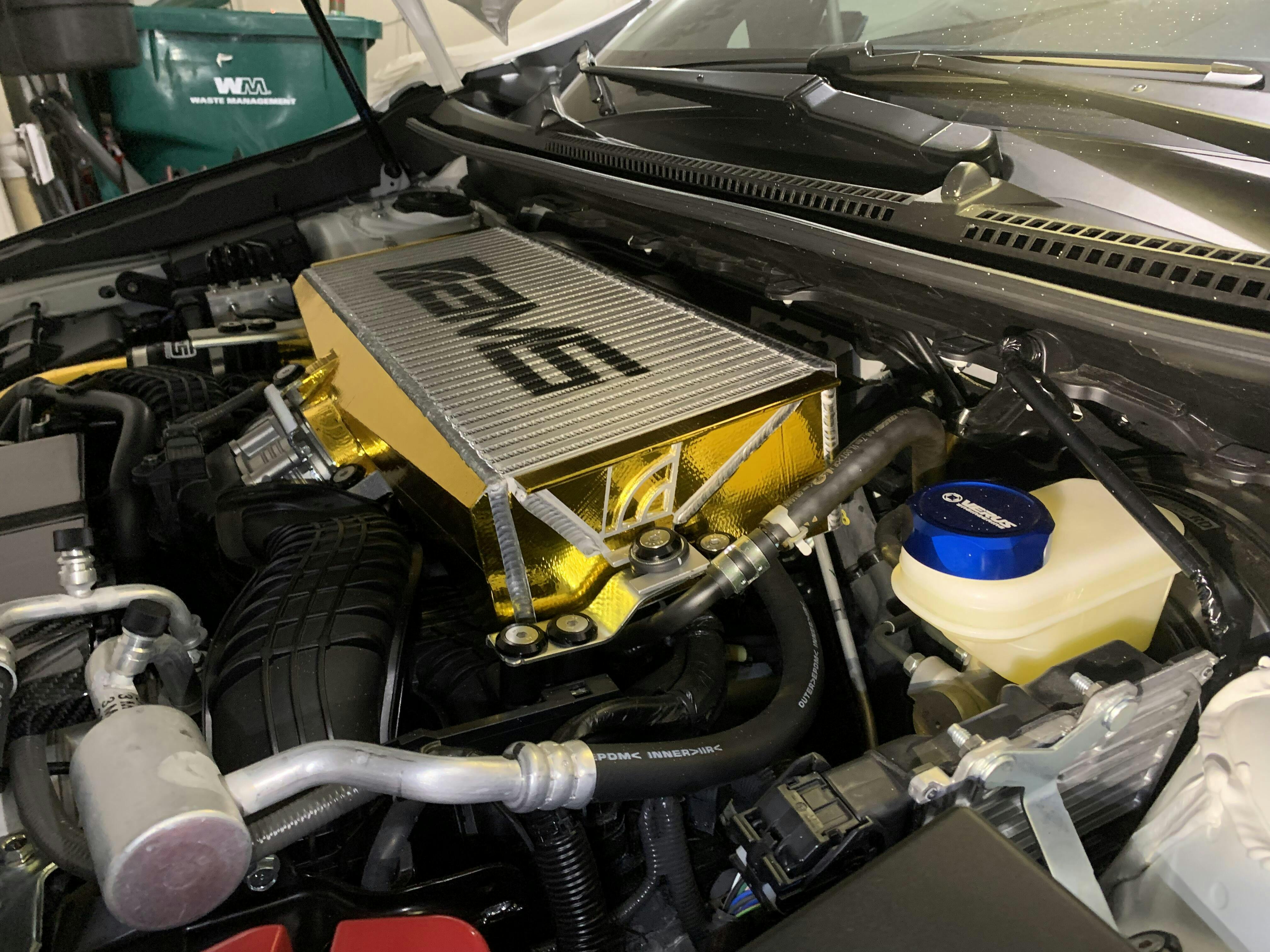

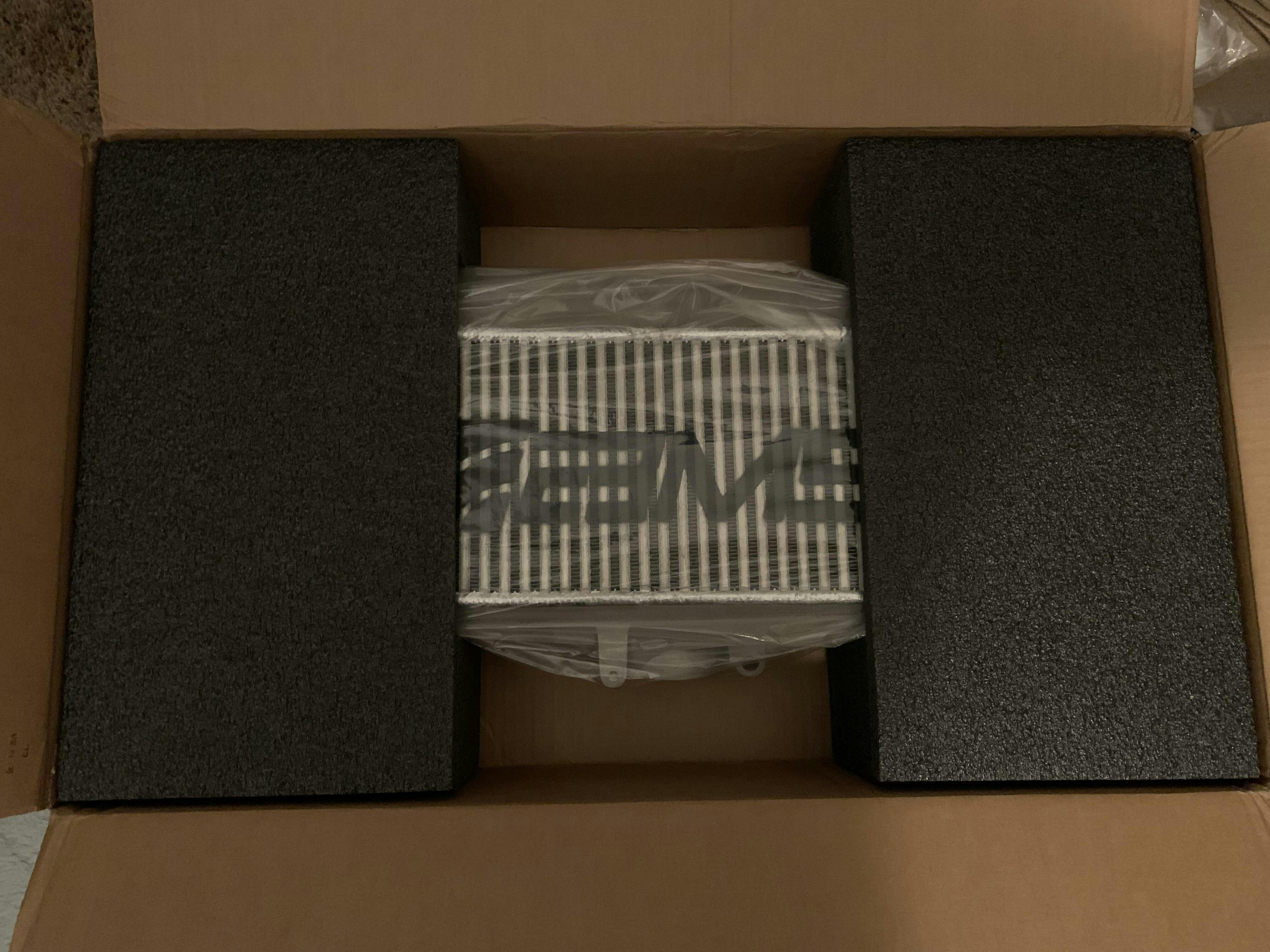

This is a giant TMIC. Felt twice as heavy as stock. Nice quality and fitment. Install went smoothly, it just slid right into place. AMS does a great job at packaging their parts with giant foam pieces trimmed to fit the parts just right. I applied gold heat tape to hopefully help against heatsoak somewhat. Now I just need to install their Intake and get it tuned.

User picture User picture User picture User picture

Brian,

Thank you for taking the time to leave a 5 Star Review for the AMS Performance Top Mount Intercooler for your 2022-2024 WRX. We're glad to hear that the install went smoothly and that you appreciate the quality and fitment of our product. We hope the addition of gold heat tape will help with heatsoak. Don't forget to also check out our Intake and get your car tuned for maximum performance. Thanks again for choosing AMS Performance from Subimods. Happy driving!

Regards,
