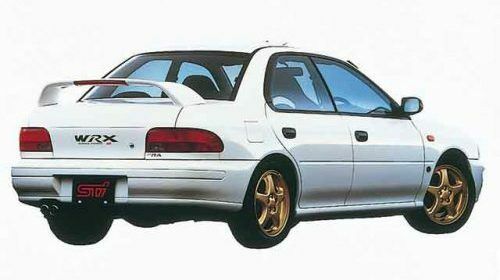

GC Chassis Wheel Fitment Guide: 1993-2001 Subaru Impreza

Introduction to the GC Chassis

The GC chassis represents the first generation of the Subaru Impreza, produced from 1993 to 2001. This platform laid the foundation for Subaru's performance legacy and earned its reputation on rally stages around the world. Today, the GC remains a favorite among enthusiasts for its lightweight construction, analog driving feel, and timeless styling.

GC Platform Variants

The GC designation covers several variants, each with slight differences that can affect wheel fitment:

• GC2 — Base Impreza sedan with single-piston front brakes
• GC4 — Base Impreza sedan with AWD
• GC6 — Mid-level Impreza L sedan
• GC8 — Performance variants including the 2.5RS (USDM), WRX, and STI (JDM)

The GC8 is the most sought-after variant, featuring wider fenders (particularly on Version 5-6 STI models), upgraded brakes, and a turbocharged EJ engine in WRX/STI trims. These differences directly impact how much wheel and tire you can fit.

Why Wheel Fitment Matters on the GC

The GC chassis is compact by modern standards, with tight wheel wells and limited fender clearance compared to newer platforms. Getting fitment right isn't just about looks—improper wheel sizing can cause:

• Rubbing on fenders, especially under compression or at full steering lock
• Contact with suspension components or brake calipers
• Altered handling characteristics and steering geometry
• Accelerated tire wear from incorrect offset or camber

Whether you're chasing a period-correct rally look, building a track weapon, or simply want a clean street setup, understanding the GC's fitment parameters is the first step toward a successful wheel upgrade.

GC Chassis Fitment Specifications

Before shopping for wheels, you need to understand the factory specifications that define what will bolt up to your GC chassis. These numbers are your foundation—every aftermarket wheel decision builds from here.

Bolt Pattern

All GC chassis Imprezas use a 5x100 bolt pattern. This is the same pattern found on many other Subaru models of the era, including the GF (wagon), GM (coupe), and early GD/GG platforms. It's a common pattern shared with vehicles like the Toyota Celica, Scion tC, and various VW/Audi models, giving you a wide selection of aftermarket wheels to choose from.

Hub Bore (Center Bore)

The factory hub bore on GC chassis Subarus is 56.1mm. This is the diameter of the center hole on your wheel that fits over the hub. For proper hub-centric fitment, your wheels should either have a 56.1mm center bore or use hub-centric rings to adapt a larger bore wheel to your hubs.

Factory Wheel Sizes by Trim

Subaru equipped different GC variants with different wheel sizes from the factory:

Factory Offset Range

As you can see from the table above, factory offsets on the GC chassis range from +45mm to +55mm. This is considered a high offset, meaning the mounting surface of the wheel is positioned toward the outside face of the wheel. High offset wheels tuck further into the fender well.

Thread Pitch for Lug Nuts

GC chassis Subarus use a 12x1.25mm thread pitch for lug nuts. This is standard across most Subaru models. You'll need five lug nuts per wheel, and we recommend using quality OEM-style or aftermarket lug nuts rated for your application.

Quick Reference: GC Chassis Specs

• Bolt Pattern: 5x100
• Hub Bore: 56.1mm
• Lug Thread Pitch: 12x1.25mm
• Factory Offset Range: +45mm to +55mm
• Factory Wheel Diameter: 14" to 17" (depending on trim)

Understanding Wheel Sizing: Width, Diameter & Offset

Wheel fitment can seem complicated, but it comes down to three primary measurements: diameter, width, and offset. Understanding how these dimensions interact will help you choose the perfect setup for your GC chassis—and avoid costly mistakes.

Wheel Diameter

Diameter is the measurement across the face of the wheel, expressed in inches. On the GC chassis, common diameters range from 15" to 17", with some owners pushing to 18" for specific aesthetics or brake clearance needs.

• 15" — Lightweight, affordable tire options, classic rally look. Ideal for autocross and budget builds.
• 16" — The sweet spot for most GC owners. Balances tire selection, weight, and appearance.
• 17" — Popular for street builds and accommodates larger brake upgrades. Slightly heavier with stiffer sidewalls.
• 18" — Possible but tight on the GC. Limited tire selection in appropriate sizes, and ride quality suffers from low-profile tires.

Wheel Width

Width is measured in inches from bead seat to bead seat (where the tire mounts), not the outer edges of the wheel. Wider wheels allow for wider tires, which means more contact patch and grip—but also more potential for rubbing.

On the GC chassis, typical widths range from 6.5" to 9" depending on your goals:

Offset Explained

Offset is the distance (in millimeters) from the wheel's mounting surface to the centerline of the wheel. This is the most critical measurement for determining whether a wheel will fit your GC without rubbing. Offset is expressed as a positive (+), negative (-), or zero value.

• Positive Offset (+) — The mounting surface is toward the front (street side) of the wheel. The wheel sits further inward, tucked into the fender. Factory GC wheels have high positive offsets (+45 to +55).
• Zero Offset (0) — The mounting surface is exactly at the wheel's centerline.
• Negative Offset (-) — The mounting surface is toward the back (brake side) of the wheel. The wheel pokes outward from the fender. Rarely used on the GC without extreme modifications.

How Offset Affects Fitment

Lowering the offset number pushes the wheel outward toward the fender. For every 5mm decrease in offset, the wheel moves approximately 5mm outward. This is how you achieve a "flush" look where the wheel fills the fender—but go too far and you'll rub.

Here's a practical example:

• A 17x7.5 +48 wheel will sit in a similar position to the factory 16x6.5 +55
• A 17x8 +35 wheel will poke significantly further out and likely require fender modifications

Calculating Wheel Position Changes

When comparing two wheel setups, you can calculate how much the wheel face will move using this approach:

1. Calculate the difference in offset between the two wheels
2. Calculate the difference in width (convert to mm: 1 inch = 25.4mm), then divide by 2
3. Combine these values to find the total change in wheel position

Example: Going from a 16x6.5 +55 to a 17x8 +45

• Offset change: 55 - 45 = 10mm outward
• Width change: (8" - 6.5") × 25.4mm ÷ 2 = 19mm outward (per side)
• Total change: 10 + 19 = 29mm further out than stock

This kind of calculation helps you predict fitment before purchasing wheels and identifies whether fender work will be necessary.

Popular Wheel Sizes for the GC Chassis

Over the years, GC owners have dialed in wheel sizes that work well for different applications—from conservative daily setups to aggressive track builds. Here are the most popular configurations, broken down by use case and body style.

Conservative / Daily Driver Fitment

If you want an upgraded look without any fender modifications, these sizes offer safe, straightforward fitment on narrow-body GC models (including USDM 2.5RS):

These sizes maintain stock-like geometry and won't cause rubbing at stock or mildly lowered ride heights. They're ideal for daily drivers who want better aesthetics and tire options without commitment to bodywork.

Aggressive Street / Light Track Fitment

For owners seeking a flush look or more tire contact patch, these sizes push the boundaries but remain manageable with minor modifications:

Wide-Body / JDM STI Fitment

JDM Version 5 and Version 6 STI models (and USDM cars converted to wide-body) have approximately 20-25mm more rear fender clearance. This opens up more aggressive options:

Staggered vs. Square Setups

Most GC owners run a square setup (same size wheels front and rear), which offers several advantages:

• Ability to rotate tires for even wear
• Simpler spare tire compatibility
• Predictable handling balance
• Cost savings on tires

Staggered setups (wider rear wheels) are less common on the GC but can work on wide-body cars. A typical staggered setup might be 17x8 front / 17x9 rear. Keep in mind that AWD Subarus benefit from matched tire diameters across all four corners to protect the drivetrain, so staggered widths should use tires with the same overall diameter.

Popular Wheel Choices for the GC

Certain wheel models have become favorites in the GC community due to their availability in proper fitments, weight, and aesthetics:

• Enkei RPF1 — Lightweight, motorsport-proven, available in 15", 16", and 17" with GC-friendly offsets
• RAYS Gram Lights 57DR / 57CR — Premium lightweight option with aggressive styling
• Konig Hypergram / Dekagram — Budget-friendly flow-formed options with low weight
• OZ Racing Rally / Superturismo — Period-correct WRC styling
• Speedline Corse — Authentic rally heritage, available in 15" for gravel setups
• SSR GTX01 / GTX03 — Japanese quality with excellent weight and strength
• Weds Sport TC105X / SA-72R — High-end Japanese forged and flow-formed options

Fitment Considerations: Fenders, Suspension & Clearance

Choosing the right wheel size is only half the equation. How those wheels interact with your fenders, suspension travel, and steering geometry determines whether your setup works flawlessly—or rubs constantly. Here's everything you need to know about making your wheels fit properly on the GC chassis.

Fender Clearance Basics

The GC chassis has relatively tight wheel wells compared to modern Subarus. The primary contact points where rubbing occurs are:

• Fender lip (front and rear) — The folded edge at the bottom of the fender opening
• Inner fender liner — Plastic liner that can contact the tire sidewall
• Rear quarter panel seam — The body seam where the rear quarter meets the wheel arch
• Front strut tower — Can contact the inner edge of the wheel at full lock

Understanding where your specific setup might rub helps you address clearance issues proactively rather than discovering them at the worst possible moment.

Fender Rolling

Fender rolling is the most common modification to gain wheel clearance. This process uses a specialized tool to fold the factory fender lip inward, creating additional space for the tire without changing the fender's external appearance.

What fender rolling accomplishes:

• Gains approximately 5-10mm of clearance per fender
• Eliminates the sharp lip that can cut tires during contact
• Maintains factory appearance when done properly
• Reversible damage-wise (the lip is still there, just folded)

Best practices for fender rolling:

1. Heat the fender with a heat gun to prevent paint cracking
2. Work slowly in multiple passes rather than forcing the lip in one go
3. Roll both front and rear fenders for consistent appearance
4. Consider having a professional body shop perform this if you're inexperienced

Fender Pulling

When rolling isn't enough, fender pulling physically reshapes the metal to push the fender outward. This is more aggressive than rolling and creates noticeable changes to the body lines.

When pulling is necessary:

• Running wheels wider than 8.5" on narrow-body cars
• Offsets below +35 on most setups
• Aggressive tire sizes (255mm+ width)
• Significantly lowered ride height combined with wide wheels

Pulling requires more skill than rolling and carries higher risk of paint damage. Many owners opt for professional body work or accept the commitment of repainting the affected panels.

Suspension & Ride Height Impact

Your suspension setup dramatically affects wheel fitment. Lowering the car reduces the distance between the tire and fender, making rubbing more likely—especially during suspension compression over bumps.

Camber & Alignment Adjustments

Adding negative camber tilts the top of the wheel inward, which can help tuck aggressive wheel setups under the fender. However, this approach has trade-offs:

Benefits of added negative camber:

• Tucks the top of the tire under the fender lip
• Can improve turn-in response and cornering grip
• Allows more aggressive wheel/tire combinations to fit

Drawbacks of excessive negative camber:

• Accelerated inner tire wear during street driving
• Reduced straight-line braking performance
• Potential for uneven tire contact patch on the street
• May mask underlying fitment issues rather than solving them

Steering Clearance at Full Lock

A often-overlooked fitment issue on the GC is inner wheel well clearance at full steering lock. When you turn the wheel completely, the front tires can contact:

• The inner fender liner
• The strut tower
• Control arm or steering components

This is particularly problematic with wide wheels, low offsets, and stretched tires. Always test full steering lock (both directions) with the car on the ground and weighted before finalizing your setup. Have someone watch the wheel wells while you turn lock-to-lock.

Suspension Travel & Bump Clearance

Static fitment (how the car looks parked) doesn't tell the whole story. Your suspension compresses when hitting bumps, during hard cornering, and under braking. A wheel that fits perfectly at rest may rub severely when the suspension is loaded.

Testing dynamic clearance:

1. With the car on the ground, have someone push down firmly on each corner
2. Listen for any contact between tire and fender
3. Check clearance by reaching into the wheel well while the suspension is compressed
4. Drive over speed bumps and rough roads, listening for rubbing
5. Perform hard cornering in a safe environment to test loaded clearance

If you have coilovers, you can adjust ride height and spring preload to find the optimal balance between appearance and clearance. Stiffer spring rates reduce suspension travel, which can help with fitment—but at the cost of ride quality.

Brake Clearance: Stock vs. Big Brake Kits

One of the most common fitment surprises on the GC chassis involves brake clearance. The wheel's inner barrel must clear the brake caliper and rotor without contact—and this becomes increasingly challenging as you upgrade your braking system. Understanding brake clearance requirements before purchasing wheels saves frustration and return shipping costs.

Stock GC Brake Dimensions

Factory brake setups on the GC chassis varied by model, market, and year. Here's what came stock on common configurations:

Stock brakes on the USDM 2.5RS and base models are compact enough to fit behind most 15" wheels with proper spoke design. This makes 15" wheels a popular choice for rally builds and budget-friendly setups where tire costs matter.

Common Brake Swaps & Their Clearance Requirements

Many GC owners upgrade their brakes for improved stopping power, fade resistance, or simply because they're swapping in a JDM drivetrain. Here are the most common brake upgrades and their wheel clearance requirements:

2-Pot Swap (Various Subaru Calipers)

Using 2-pot calipers from other Subaru models (Legacy GT, Forester XT, etc.) with larger rotors is a budget-friendly upgrade:

• Rotor size: 294mm-300mm front
• Minimum wheel: 16" (most designs clear)
• Notes: Some tight-spoke 16" wheels may still have issues

4-Pot / 2-Pot STI Swap

The most popular upgrade path is swapping in JDM STI brakes (4-pot front, 2-pot rear). These came on Version 3-6 STI models and can be sourced from JDM parts importers:

• Front rotor: 294mm with 4-piston caliper
• Rear rotor: 290mm with 2-piston caliper
• Minimum wheel: 16" (tight fit on some designs), 17" recommended
• Notes: Verify spoke clearance—some 16" wheels won't clear the 4-pot caliper despite fitting the rotor

Brembo Swap (GD/GG STI Brakes)

Upgrading to the iconic gold Brembo calipers from the 2004-2007 STI (GD chassis) is a significant improvement but requires careful wheel selection:

• Front rotor: 326mm (12.8") with 4-piston Brembo
• Rear rotor: 316mm (12.4") with 2-piston Brembo
• Minimum wheel: 17" (and not all 17" wheels clear)
• Notes: Requires 5x114.3 hub conversion or adapter setup

Aftermarket Big Brake Kits

Purpose-built big brake kits from companies like StopTech, Wilwood, and AP Racing offer the best performance but require the most wheel clearance:

• Typical rotor size: 328mm-355mm+ front
• Minimum wheel: 17" (many require 18")
• Notes: Always verify manufacturer's wheel clearance specs before purchasing

How to Measure Brake Clearance

Before purchasing wheels, measure your brake setup to determine minimum wheel requirements:

1. Measure caliper protrusion: From the hub mounting surface to the outermost point of the caliper (toward the wheel spokes)
2. Check caliper width: The widest point of the caliper body
3. Note rotor diameter: Measure across the rotor face
4. Document everything: Take photos with a ruler for reference when shopping

When evaluating wheels, you need to know the wheel's inner barrel clearance—the space between the hub mounting surface and the back of the spokes. Unfortunately, this spec isn't always published by wheel manufacturers.

Wheel Designs That Clear Large Brakes

Not all wheels of the same diameter offer equal brake clearance. Spoke design significantly impacts how much room exists for calipers:

Good for big brake clearance:

• Deep-dish or concave designs with spokes that curve away from the hub
• Multi-spoke designs with thin, widely-spaced spokes
• Wheels specifically designed for big brake applications
• Higher offset wheels (more space between spokes and hub)

Challenging for big brake clearance:

• Flat-faced or convex spoke designs
• Thick, chunky spokes that extend close to the hub
• Low offset wheels (spokes sit closer to caliper)
• Mesh-style wheels with minimal spoke gaps

Using Wheel Spacers for Brake Clearance

If your chosen wheels are just barely contacting the caliper, wheel spacers can provide additional clearance. However, this approach has trade-offs:

Pros:

• Relatively inexpensive solution
• Can save a wheel purchase that's borderline on clearance
• May improve stance as a side benefit

Cons:

• Effectively reduces offset (may cause fender rubbing)
• Adds stress to wheel bearings and suspension components
• Requires hub-centric spacers and proper torque specs
• May not be legal for street use in some jurisdictions

Test Fitting Before Final Installation

Always test fit wheels before mounting tires. This allows you to:

• Verify caliper clearance with the wheel fully seated
• Check for spoke-to-caliper contact at all points of rotation
• Confirm hub-centric ring fitment
• Identify any issues before tires are mounted (easier returns)

Spin the wheel by hand while watching the caliper-to-spoke gap. The closest point may not be obvious at first glance—check the entire rotation.

Hub-Centric Rings & Lug Hardware

Proper wheel mounting goes beyond bolt pattern and offset. Hub-centric rings and correct lug hardware ensure your wheels are centered precisely on the hub and secured safely. Skipping these details can lead to vibrations, uneven wear, and in worst cases, dangerous wheel failures. Here's everything you need to know about mounting your GC wheels correctly.

Understanding Hub-Centric vs. Lug-Centric

There are two ways a wheel can be centered on your vehicle:

• Hub-centric: The wheel's center bore fits precisely over the hub, centering the wheel before the lugs are tightened. The hub bears the vehicle's weight.
• Lug-centric: The wheel is centered by the lug nuts/bolts alone during installation. The lugs bear centering responsibility.

Factory Subaru wheels are hub-centric, designed to fit the GC's 56.1mm hub bore exactly. Most aftermarket wheels have larger center bores (commonly 67.1mm, 72.6mm, or 73.1mm) to fit multiple vehicle makes. This is where hub-centric rings become essential.

Why Hub-Centric Rings Matter

When an aftermarket wheel's center bore is larger than your hub, the wheel can shift slightly before the lugs fully seat it. Even tiny amounts of off-center mounting cause problems:

• Vibration at speed: The most common symptom—a shimmy or vibration that increases with speed, often mistaken for balance issues
• Uneven tire wear: Off-center wheels create inconsistent contact patches
• Lug stress: Lugs bear centering loads they weren't designed for, increasing fatigue and potential failure risk
• Repeated rebalancing: Shops can't balance wheels that aren't centered properly—you'll chase the vibration forever

Choosing the Right Hub-Centric Rings

Hub-centric rings are specified by two measurements: the outer diameter (matching your wheel's center bore) and the inner diameter (matching your vehicle's hub). For the GC Impreza:

GC Hub Size: 56.1mm

Common hub-centric ring sizes for GC Subarus:

Hub-Centric Ring Materials

Hub-centric rings come in different materials, each with trade-offs:

Plastic/Polycarbonate Rings

• Pros: Inexpensive, won't seize to the hub, easy to remove
• Cons: Can crack in extreme cold, may wear over time with repeated wheel changes
• Best for: Street cars, seasonal wheel swaps, budget builds

Aluminum Rings

• Pros: Extremely durable, precise fit, withstands heat and stress
• Cons: Can seize to hub if not treated with anti-seize, more expensive
• Best for: Track cars, permanent wheel setups, high-performance builds

GC Impreza Lug Specifications

Using correct lug hardware is critical for safety. The GC Impreza uses the following specifications:

• Lug thread size: 12mm x 1.25 pitch
• Factory lug seat type: 60-degree conical (cone/taper seat)
• Number of lugs: 5 per wheel
• Factory torque spec: 65-80 ft-lbs (check your service manual)

Lug Seat Types: Getting It Right

The lug seat is the shape of the surface where the lug contacts the wheel. Using the wrong seat type is dangerous—the lug won't secure the wheel properly:

Conical (Cone/Taper) Seat

The factory GC setup and most common aftermarket configuration. The lug has a 60-degree tapered surface that wedges into a matching tapered hole in the wheel.

• Most aftermarket wheels use conical seats
• Factory Subaru lugs are conical
• When in doubt, this is likely what you need

Ball (Radius) Seat

A rounded, spherical lug seat. Less common but used by some European-style wheels:

• Requires specific ball-seat lug nuts
• Cannot interchange with conical—the shapes don't match
• Check your wheel manufacturer's specifications

Flat (Mag) Seat

A flat washer-style seat, typically used with shank-style lugs:

• Common on older American wheels and some racing applications
• Requires flat-seat lug nuts with integrated or separate washers
• Relatively rare in the Subaru aftermarket world

Open-End vs. Closed-End Lug Nuts

Lug nuts come in two basic configurations:

Closed-End (Acorn) Lugs

• Sealed top protects threads from debris and corrosion
• Cleaner appearance
• Must match wheel stud length—too-long studs won't allow the lug to seat

Open-End Lugs

• Through-hole design accommodates any stud length
• Threads exposed to elements (can corrode)
• Required if using extended wheel studs

For most GC builds with stock-length studs, closed-end lugs work fine. If you've installed extended studs for spacers or track use, open-end lugs are necessary.

Extended Wheel Studs

Some GC owners install longer wheel studs for additional thread engagement, especially when using spacers or for easier wheel installation at the track. Consider extended studs if:

• You're running wheel spacers (more threads engaged = safer)
• You frequently remove wheels (track days, autocross)
• Your aftermarket wheels have thicker mounting surfaces
• You want extra peace of mind for high-stress driving

When installing extended studs, ensure you're using open-end lug nuts and that the studs don't protrude beyond the lug nut (which can interfere with center caps or look unfinished).

Lug Nut Materials & Styles

Aftermarket lug nuts come in various materials, each with different characteristics:

For most street and weekend track use, quality steel lug nuts are the practical choice. Aluminum lugs save weight but require careful torquing and more frequent inspection.

Torque & Installation Best Practices

Proper installation technique matters as much as having the right parts:

1. Clean threads: Wire brush studs and inspect for damage before installation
2. Hand-start all lugs: Thread each lug by hand before using tools to prevent cross-threading
3. Star pattern: Tighten lugs in a star pattern (not circular) to seat the wheel evenly
4. Torque wrench: Always use a torque wrench for final tightening—65-80 ft-lbs for GC Subarus
5. Re-torque: Check torque after 50-100 miles of driving, especially on new wheels

Impact guns are convenient but can over-torque or damage lugs. Use them for removal and initial snugging only—final torque should always be done with a calibrated torque wrench.

Tire Sizing for GC Wheels

Choosing the right tire size is just as important as selecting the perfect wheel. The tire completes the equation—affecting fitment, ride quality, speedometer accuracy, grip levels, and overall aesthetics. Get it wrong, and you'll face rubbing, poor handling, or a setup that just doesn't look right. Here's how to nail your GC Impreza tire sizing.

Understanding Tire Size Nomenclature

Tire sizes follow a standardized format. Let's break down a common GC tire size: 225/45R17

• 225: Section width in millimeters (the tire's width from sidewall to sidewall)
• 45: Aspect ratio (sidewall height as a percentage of width—45% of 225mm = 101.25mm sidewall)
• R: Radial construction (standard for all modern passenger tires)
• 17: Wheel diameter in inches

The key relationship to understand: wider tires need lower aspect ratios to maintain similar overall diameter. This keeps your speedometer accurate and prevents clearance issues.

Factory GC Tire Sizes

Stock GC Imprezas came with various tire sizes depending on trim and model year:

The factory overall diameter of approximately 24.1-24.2 inches is your baseline. Staying within 3% of this diameter keeps speedometer error minimal and maintains proper gearing feel.

Recommended Tire Sizes by Wheel Diameter

Based on common GC wheel upgrades and proven fitments, here are recommended tire sizes:

15-Inch Wheels (Rally/Lightweight Builds)

16-Inch Wheels (Street/Balanced Builds)

17-Inch Wheels (Performance/Show Builds)

18-Inch Wheels (Show/Aggressive Builds)

Tire Width vs. Wheel Width

Every tire has an approved wheel width range. Mounting a tire on a wheel that's too narrow or too wide affects handling, wear, and safety:

Proper Tire-to-Wheel Width Matching

Understanding "Stretch"

Tire stretch refers to mounting a tire on a wheel wider than its ideal width. The sidewalls pull outward, creating a "stretched" appearance:

• Mild stretch: Tire on a wheel 0.5-1" wider than ideal—subtle visual difference, generally safe
• Moderate stretch: Tire on a wheel 1-1.5" wider than ideal—noticeable stretched look, reduced sidewall protection
• Aggressive stretch: Tire on a wheel 1.5"+ wider than ideal—significant aesthetic, compromised safety margins

Aspect Ratio Considerations

The aspect ratio (sidewall height) dramatically affects ride quality and handling:

Higher Aspect Ratio (Taller Sidewall: 50-55)

• Pros: More comfortable ride, better pothole absorption, more sidewall flex for rally/rough roads, cheaper tires generally
• Cons: More sidewall flex in corners, less precise steering feel, less aggressive appearance
• Best for: Daily driving, rally builds, rough roads, comfort priority

Lower Aspect Ratio (Shorter Sidewall: 35-45)

• Pros: Sharper steering response, less sidewall flex in hard cornering, more aggressive look
• Cons: Harsher ride, more susceptible to pothole damage, less protection for wheels
• Best for: Track use, aggressive street driving, show cars, smooth roads

For most GC street builds, aspect ratios between 40-50 offer the best balance of looks, performance, and livability.

Speedometer & Gearing Effects

Changing overall tire diameter affects your speedometer reading and effective gearing:

Larger Diameter (Taller Tire)

• Speedometer reads slower than actual speed
• Effective gearing becomes taller (lower RPM at speed)
• Slight decrease in acceleration, slight increase in highway fuel economy

Smaller Diameter (Shorter Tire)

• Speedometer reads faster than actual speed
• Effective gearing becomes shorter (higher RPM at speed)
• Slight increase in acceleration feel, slight decrease in highway fuel economy

Example: Going from a 24.1" stock diameter to a 25.0" aftermarket setup means your speedometer will read about 60 mph when you're actually doing 62.2 mph—a 3.7% error. Most states allow up to 5% speedometer error for inspection purposes.

Tire Selection by Use Case

Beyond size, the tire compound and construction should match your driving style:

Daily Driving / All-Season

• Prioritize tread life, wet traction, and comfort
• All-season or grand touring tires work well
• Look for 40,000+ mile treadwear warranties

Performance Street

• Summer performance tires offer better grip in dry and wet
• Softer compounds mean shorter tread life (20,000-30,000 miles typical)
• Not suitable for winter driving

Track / Autocross

• Extreme performance summer tires or 200-treadwear tires
• Maximum grip, minimal tread life (5,000-15,000 miles)
• May be too aggressive for comfortable daily driving

Rally / Gravel

• Taller sidewalls (50+ aspect ratio) for impact absorption
• All-terrain or rally-specific compounds
• 15" or 16" wheels to allow adequate sidewall flex

Tire Sizing Quick Reference for Popular GC Setups

Here are proven tire sizes for the most common GC wheel configurations:

These combinations represent starting points based on community experience. Your specific suspension setup, fender modifications, and driving style may allow more or less aggressive sizing.

Common Fitment Mistakes to Avoid

The GC Impreza community has decades of collective wheel fitment experience—which means plenty of lessons learned the hard way. Avoid these common mistakes to save yourself time, money, and frustration when building your perfect GC wheel setup.

Mistake #1: Ignoring Hub-Centric Fitment

One of the most common oversights is running wheels without proper hub-centric fitment. Many aftermarket wheels have a larger center bore than the GC's 56.1mm hub diameter.

The Problem

• Wheels centered only by lug nuts can develop vibrations over time
• Uneven load distribution puts extra stress on studs and lugs
• High-speed vibrations that worsen as speeds increase
• Potential for wheel studs to loosen or fail under stress

The Solution

• Always use hub-centric rings when the wheel's center bore is larger than 56.1mm
• Match the ring's outer diameter to your wheel's center bore and inner diameter to 56.1mm
• Plastic rings work for most street applications; aluminum rings are better for track use
• Verify rings are seated properly before torquing lug nuts

Mistake #2: Wrong Lug Nut Seat Type

Different wheels require different lug nut seat types. Using the wrong style can result in loose wheels, damaged seats, or worse—wheels coming off while driving.

The Three Main Seat Types

• Conical (tapered): Most common for aftermarket wheels, 60-degree taper
• Ball (radius): Used by some European vehicles and certain wheel brands
• Flat (mag): Requires a washer, used on some racing wheels

The Problem

• Stock Subaru lug nuts are conical—but not all aftermarket wheels use conical seats
• Using conical lugs on ball-seat wheels (or vice versa) creates point contact instead of proper seating
• Improper seating leads to loose wheels, damaged wheel faces, and potential wheel-off situations

The Solution

• Always verify your wheel's required lug seat type before purchasing lug nuts
• When in doubt, contact the wheel manufacturer
• Inspect lug nut seats and wheel seats for damage before installation
• Re-torque new wheels after 50-100 miles of driving

Mistake #3: Insufficient Wheel Stud Length for Spacers

Adding wheel spacers without upgrading to longer studs is a recipe for disaster.

The Problem

• Stock GC wheel studs are sized for stock wheels—typically providing 8-10 full threads of engagement
• Adding a 15mm spacer reduces thread engagement by 15mm
• Minimum safe thread engagement is generally the diameter of the stud (12mm for M12 studs)
• Insufficient engagement leads to stripped threads, broken studs, or wheels separating

The Solution

• For spacers 10mm or less, verify you still have adequate thread engagement with stock studs
• For spacers 15mm or more, install extended wheel studs
• Calculate total engagement: Stud length minus spacer thickness minus wheel thickness equals thread engagement
• Always aim for at least 1.5x the stud diameter in thread engagement (18mm minimum for M12x1.25 studs)

Mistake #4: Not Test-Fitting Before Final Assembly

Buying wheels online based solely on specs without test-fitting is a gamble that doesn't always pay off.

The Problem

• Specs on paper don't account for spoke design, which affects caliper clearance
• Manufacturer tolerances mean actual offset can vary ±2mm from stated specs
• Your specific suspension setup may differ from "standard" GC configurations
• Discovering fitment issues after mounting and balancing tires is expensive

The Solution

• If possible, test-fit bare wheels before mounting tires
• Check caliper clearance at multiple points as you rotate the wheel
• Verify suspension clearance through full travel (bounce the corner)
• Turn the steering lock-to-lock to check for inner fender contact
• Buy from retailers with good return policies when ordering online

Mistake #5: Choosing Looks Over Function

It's tempting to prioritize aesthetics, but wheels that don't match your driving style lead to disappointment.

The Problem

• Heavy chrome wheels on a track car kill lap times
• Ultra-low-profile tires on rough roads destroy wheels and suspension
• Aggressive fitment on a daily driver means constant rubbing and tire wear
• Stretched tires for looks compromise grip and safety

The Solution

• Define your priorities before shopping: daily comfort, weekend track, show car, rally
• Choose wheel weight appropriate to your use case
• Select tire sizes that balance aesthetics with practicality
• Accept that the "perfect Instagram fitment" may not be practical for your actual driving

Mistake #6: Forgetting About Tire Clearance

A wheel that fits doesn't guarantee the tire will clear. Tire sidewall bulge adds width beyond the wheel lip.

The Problem

• A 225mm tire on an 8" wheel may measure 230-235mm at the widest point of the sidewall
• Sidewall bulge increases with lower tire pressure and higher loads
• Clearance that seems fine in the garage disappears under hard cornering
• Inner sidewall contact with suspension components causes rapid tire damage

The Solution

• Account for 5-10mm of sidewall bulge beyond wheel lip on each side
• Check clearances with the car loaded (passengers, cargo) if that's how you drive
• Verify clearance at full suspension compression, not just static ride height
• Leave margin for tire pressure variations and suspension settling

Mistake #7: Neglecting TPMS Compatibility (If Equipped)

Some later GC Imprezas and many GC owners who've swapped newer Subaru components may have TPMS (Tire Pressure Monitoring System) considerations.

The Problem

• Aftermarket wheels may not have proper TPMS sensor clearance
• Some wheel designs interfere with sensor stems
• Forgetting to transfer or install TPMS sensors triggers dash warnings

The Solution

• Verify TPMS sensor compatibility when ordering wheels
• Budget for new TPMS sensors if needed (sensors wear out and have batteries)
• Consider clamp-in sensors vs. snap-in sensors based on wheel design
• Have sensors programmed to your vehicle after installation

Mistake #8: Improper Torque Specifications

Both under-torquing and over-torquing lug nuts cause problems.

The Problem

• Under-torqued: Wheels loosen over time, potentially catastrophic failure
• Over-torqued: Stretched or broken studs, warped brake rotors, stripped threads
• Impact guns without torque limiting often over-torque significantly
• Hand-tightening "until it feels right" is inconsistent and unreliable

The Solution

• Always use a calibrated torque wrench for final tightening
• GC Impreza lug nut torque spec: 72-87 ft-lbs (98-118 Nm)
• Torque in a star pattern to ensure even seating
• Re-torque after 50-100 miles on new wheel installations
• Check torque periodically, especially after track days or spirited driving

Mistake #9: Not Accounting for Future Modifications

Buying wheels that fit your current setup without considering future plans can be costly.

The Problem

• Wheels that clear stock brakes may not clear a future big brake kit
• Lowering the car changes clearances—what fit at stock height may rub when lowered
• Fender modifications planned for "later" may never happen, leaving you with rubbing issues

The Solution

• Plan your build holistically before buying wheels
• If a big brake kit is in your future, verify wheel clearance now
• If you plan to lower the car, factor that into your fitment calculations
• Choose slightly conservative fitment if your build plans are uncertain

Mistake #10: Buying Unknown Quality Wheels

Budget constraints are real, but wheel failure can have serious consequences.

The Problem

• Replica and no-name wheels often have inconsistent quality control
• Unknown alloy compositions may be brittle or weak
• Poor casting or machining can create stress concentrations
• Wheel failure at speed can result in loss of vehicle control

The Solution

• Buy from reputable brands with established track records
• Look for wheels that meet JWL (Japan Light Alloy Wheel) or VIA (Vehicle Inspection Association) standards
• Avoid deals that seem too good to be true—quality wheels cost money to manufacture
• Consider quality used wheels from known brands over cheap new replicas

Quick Reference: Fitment Mistake Checklist

Before finalizing any GC wheel purchase, verify:

• ☐ Hub-centric rings ordered if wheel bore exceeds 56.1mm
• ☐ Correct lug nut seat type confirmed (conical, ball, or flat)
• ☐ Adequate stud length for any spacers being used
• ☐ Caliper clearance verified (especially with aftermarket brakes)
• ☐ Suspension clearance checked through full travel
• ☐ Fender clearance confirmed at full steering lock
• ☐ Tire sidewall bulge accounted for in clearance calculations
• ☐ TPMS compatibility addressed (if applicable)
• ☐ Torque wrench ready for proper installation
• ☐ Wheel quality verified from reputable manufacturer

Taking the time to verify each of these points before purchasing and installing wheels will save you from headaches, wasted money, and potentially dangerous situations down the road.
